ADDA : Average Design, Average Performance

ADDA B38-2

There is absolutely nothing noteworthy about this heatsink. It has average cooling performance.

Idle
°C
Load
°C
Fan
rpm
Air flow
cfm
Noise
dB
Weight
g
69
78
6000
21
35,3
228

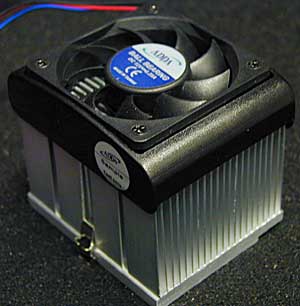

ADDA B53

The big brother of the B38-2 scores a bit better in terms of cooling performance thanks to it's massive size, good contact area finish and high air flow.

Idle
°C
Load
°C
Fan
rpm
Air flow
cfm
Noise
dB
Weight
g
66
75
7000
28,5
40,4
282

Next Topic : AAVID: Average Design, But With A Little More Effort
